A one-degree temperature error can noticeably change a Brix reading, which may cost a craft brewery hundreds of dollars per batch. This makes accurate refractometer use important for homebrewing, winemaking, coffee roasting, and lab work.
Hand Refractometer Function
This focused guide covers the basics of refractometers, how they work, and how to use them in real settings. It provides clear instructions for handheld and digital units, along with buying guidance for different applications. It also discusses buying refractometers and sourcing them from established vendors such as Installation Parts Supply (InstallationPartsSupply.com), a factory distributor and industrial supplier serving the beverage industry and OEMS for more than two decades.
It gives quick guidance on taking Brix and Specific Gravity readings, checking calibration, and understanding temperature compensation and correct sample handling. Whether you require a portable model for on-site checks or a digital bench unit for laboratory use, this section aims to equip you with the knowledge to achieve precise and consistent measurements swiftly.
Key Takeaways
- Minor temperature changes can affect Brix readings, so temperature control matters for accuracy.
- A refractometer can support brewing, winemaking, honey testing, and salinity measurement.
- Different refractometer types suit different jobs, so choose one that matches your use case.
- A digital refractometer may be best when speed, data logging, and integration matter.
- Buying refractometer products from reputable suppliers like Installation Parts Supply ensures access to commercial-grade parts and support.

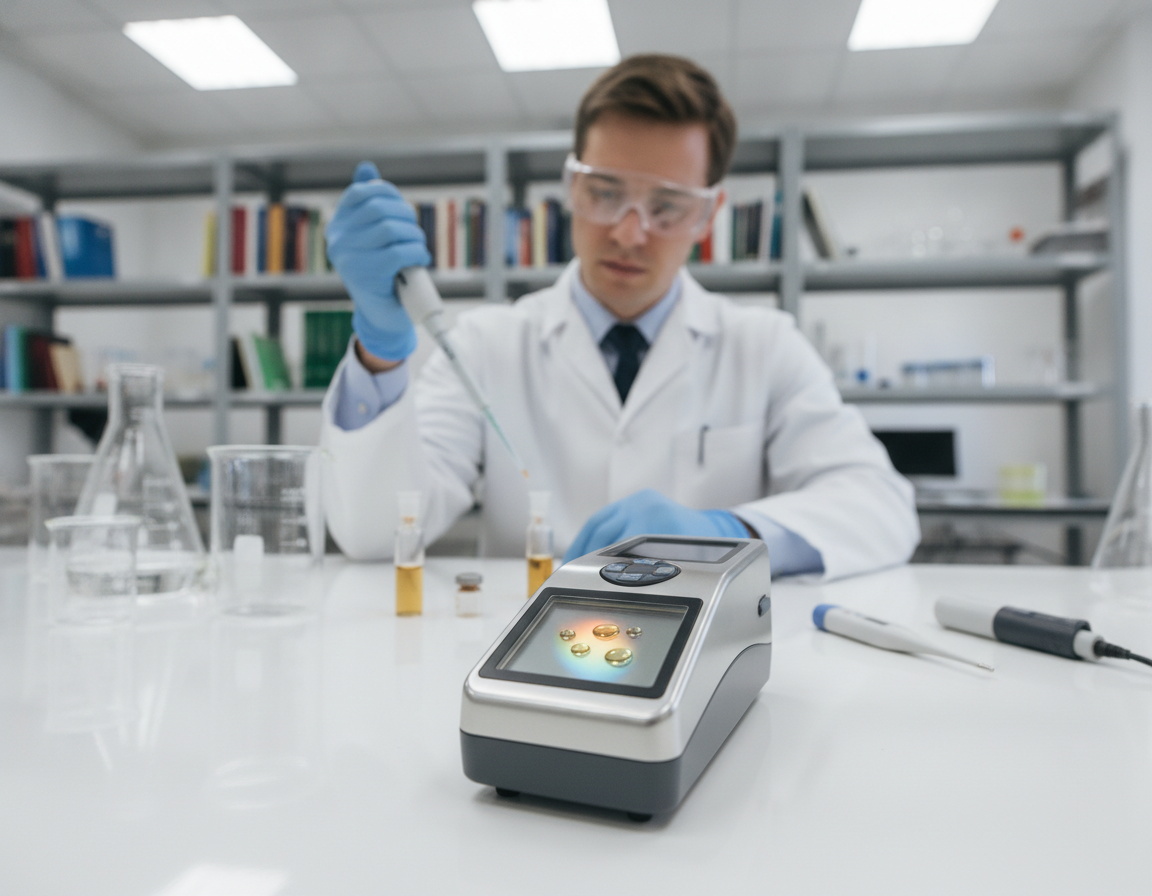

Automated Refractometers
What A Refractometer Does And How It Works
A refractometer measures the bending of light as it transitions from air into a sample. This light shift reveals the refractive index, which helps show the sample’s makeup and concentration. Knowing the basic mechanics makes it easier to select the proper instrument and reduce errors.
Definition And Main Principle
The device operates on the principles of Snell’s Law and the critical angle. When light enters the sample, it refracts, creating a boundary between light and dark. This visible boundary relates to a particular refractive index reading. Factors such as temperature and wavelength can affect readings, so many instruments require compensation or temperature control.
Common Units And Scales
Refractometers either display refractive index or convert readings into units used for specific tasks. Brix (°Bx), for example, measures sucrose concentration in fruit, juice, honey, and similar solutions. Brewers and winemakers often use Plato (°P), Specific Gravity (SG), Oechsle (°Oe), and Baumé (B°). Salinity readings often appear in PPT, ‰, or percentage form.
The available outputs may include RI, % sugar, °Bx, °P, SG, and salinity. Users often use conversion tables or calculators to verify results. It is advisable to select a scale that aligns with the sample and expected range for optimal results.
Refractometer Types And Their Applications
Handheld optical models are easy to carry and usually require just a few drops. These tools use an internal prism and a reticle viewed through magnification. They are useful for both professionals and hobbyists working in vineyards, apiaries, and homebrew spaces.
Digital refractometer models employ LED light and a sensor to provide direct digital readings. Many include automatic temperature correction and make data recording easier. Benchtop Abbe refractometers, on the other hand, excel in laboratory settings where high accuracy and broad wavelength control are critical.
Automatic and inline models are useful in industrial and food processing settings where continuous monitoring is needed. Portable optical units are available for specific applications like coolants and emulsions. Dual-scale instruments that show Brix and SG or Plato are convenient for brewing.
| Type | Common Use | Main Advantage | Common Range |
|---|---|---|---|
| Pocket optical | On-site tests: vineyards, beekeeping, homebrew | Few drops needed, easy to carry | Up to 32 °Bx |
| Digital handheld | Fast lab and field testing | Easy readout, temp correction | 0 to 85 °Bx, depending on model |
| Abbe Benchtop | Laboratories and QC | High accuracy, controlled wavelength | Wide refractive index and concentration ranges |
| Inline Automatic | Food processing, industrial lines | Continuous, high-throughput | Ranges matched to the process |
| Portable fluid optical | Glycol, coolants, and emulsions | Specialized concentration checks | Application-dependent |
Choosing The Right Refractometer For Your Needs
When choosing a refractometer, start with the exact task you need it to perform. A handheld optical model works well for fruit assessments, beekeeping, and fast homebrew checks. Digital handheld units are often better for coffee roasting and craft brewing because readings are quick. Benchtop or inline units suit labs, production lines, and glycol monitoring where accuracy and consistency are essential.
Match the device type to the application
For homebrewers measuring wort and estimating ABV, models showing °Bx and SG or Plato are a practical choice. Pairing a refractometer with a hydrometer can help with post-fermentation calculations. Professional breweries often choose benchtop digital units or inline refractometers for continuous monitoring and control-system integration.
Honey and syrups require a high-Brix refractometer, usually in the 60 to 90 °Bx range. Coffee aficionados prefer digital handhelds with high resolution to track roast development and extraction. For plant and fruit field checks, lightweight optical or battery-powered handhelds provide quick, reliable Brix readings.
Key features to compare
When comparing refractometers, review measurement range and supported units such as Brix, Plato, SG, and refractive index. Automatic Temperature Compensation (ATC) and calibration type, whether mechanical or digital, also matter. The instrument’s accuracy, repeatability, and required sample volume all affect practical reliability.
Durability is important when the tool will be used in breweries, farms, or field conditions. Choosing between glass and sapphire prisms affects scratch resistance and cleaning convenience. Digital and automatic units may need USB, RS232, or network connectivity for records and integration. Low sample volume and fast calibration can speed up everyday testing.
Budget and cost considerations
Handheld optical models usually cost less, require no power, and work well for budget-conscious users. Handheld digital units are usually mid-range and offer automatic correction with easy-to-read screens.
Benchtop, automatic, and inline models are pricier, but they can deliver better accuracy, throughput, and integration. When calculating the total cost, remember to include calibration standards, spare prisms, and any necessary installation parts such as tubing, clamps, and fittings for draft systems. Comparing prices across reputable brands can help find the best balance of features and value.
| Application | Best Fit | Important Features | Common Cost Range |
|---|---|---|---|
| Plants, fruit, and beekeeping | Optical handheld or digital handheld | Low sample volume, 0-35 Brix range, durable build | About $30 to $250 |
| Homebrewing and craft beer | Dual-scale handheld or digital benchtop | °Bx, SG/Plato, ATC, easy calibration | About $50 to $1,200 |
| Brewery and wine laboratory work | Digital benchtop or inline | High accuracy, data logging, integration | $1,000 to $10,000+ |
| Coffee roasting and specialty coffee | Handheld digital | Detailed resolution, fast display, ATC | $100 to $600 |
| High-sugar samples and honey | High-Brix rated handheld or benchtop | High-Brix range, durable prism | $80-$2,000 |
Preparing Samples And The Workspace For Accurate Readings
A clean, calm workspace and careful sample preparation are essential for dependable results. Small, consistent setup habits can reduce errors during refractometer testing. This helps produce more consistent measurements. Follow a short checklist before starting the process.
Cleaning And Sample Handling
Keep the prism free of residue by using distilled or deionized water and a lint-free cloth. Gently wipe the prism after each use to prevent contamination and extend instrument life. For difficult stains, use only the manufacturer-recommended solvent.
When dealing with viscous substances like honey or syrups, warm them slightly to enhance fluidity. This helps the sample spread evenly. Use pipettes, disposable droppers, or syringes for accurate placement and less spillage. Remove bubbles and foam before taking the reading.
Temperature Control And Compensation
Because refractive index is temperature-dependent, keep both sample and instrument at ambient temperature. Many digital models automatically adjust for temperature variations. For critical work, confirm that this function is active and accurate.
For higher accuracy, use a reliable thermometer alongside the refractometer. Follow the manufacturer’s instructions for calibrating Brix values when conditions move outside the recommended range. Apply correction factors when needed to account for temperature differences.
Sample Volume And Homogeneity
Handheld units often work with a few drops, but benchtop devices may need more sample volume. For suspensions and emulsions, ensure thorough mixing to prevent light scattering by solids, which could distort results.
For fermenting samples, clarify or filter them so refractometer and hydrometer readings align more closely. Adherence to rigorous sample preparation protocols, mixing, removing impurities, and matching temperature, enhances precision and minimizes the need for repeated tests.
Using A Handheld Refractometer Step By Step
Accurate measurements with a refractometer are straightforward with a consistent routine. This guide covers preparation, sample application, and result interpretation for different uses. It helps produce reliable readings with handheld or pocket refractometers.
Getting the instrument ready
Use distilled water and lint-free tissue to clean the prism. Inspect the glass for scratches or residue that could affect a reading refractometer result.
Calibrate before use. For analog models, place distilled water on the prism and adjust the calibration screw until the scale reads 0 °Bx or the specified RI. With digital units, use the built-in routine to zero the device and verify ATC operation.
For optical handheld units, review lighting and focus the eyepiece. Proper light makes repeatable refractometer readings easier.
Adding the sample and taking the reading
Add enough drops to cover the prism area fully without overflow. Close the daylight plate on optical units so the sample forms a thin film without air pockets.
For optical handheld refractometers, look through the eyepiece and adjust focus until the reticle is sharp. Align the shadow line with the scale and note the value.
With digital handheld refractometers, place the sample and press measure. Wait until the display stabilizes. Many pocket refractometer models show a temperature-corrected reading automatically.
Recording readings and interpreting results
Write down the numeric reading and the sample temperature. Note the scale used, such as °Bx, SG, or Plato, so results remain comparable over time.
For brewing, use refractometer and hydrometer data together or use manufacturer calculators to estimate ABV. Use the R-D approach: refractometer reading (°Bx) minus the D correction from SG conversions. When both instruments are read at the same temperature, most homebrew scenarios can reach roughly ±0.5% ABV accuracy.
In food production or QC, compare readings with target specifications or conversion charts. For honey and other high-Brix products, use scales and tables designed for dense syrups to avoid misinterpretation.
How To Use Digital And Automatic Refractometers
In today’s laboratories and production environments, precision and consistency are essential. Digital refractometers deliver quick readings and help reduce user error. Choose a benchtop automatic refractometer for high-volume work or a portable digital refractometer for on-site checks.
Device Setup And Powering
Start by following the manufacturer’s guidelines for power activation, battery placement, and warm-up. Use distilled water or certified solutions for calibration and confirm that Automatic Temperature Compensation is working.
Choose the units required for your work, including °Bx, Specific Gravity, or refractive index. For automatic refractometer systems integrated into production lines, adjust pump rates, rinse cycles, and sample handling as per the supplier’s recommendations.
Automatic Measurement Process
Automatic units use LED light and sensors or diode arrays to identify the refractive boundary. Advanced algorithms convert the signal into refractive index and apply needed temperature corrections.
Many models accept autosamplers or pumps for sequential loading, measurement, and rinsing of samples. Continuous concentration monitoring is facilitated by inline automated refractometer setups. Ensure sample lines are clean and devoid of air bubbles to prevent inaccuracies.
Set sampling frequency and alarm thresholds so out-of-spec values trigger alerts. Utilize a portable digital refractometer for rapid verification during troubleshooting of automated systems.
Logging, Data Output, And Integration
Digital refractometers show immediate results. Export options typically include USB, RS232, and Ethernet for data capture. Choose units that timestamp readings and record temperature with each measurement.
Integrate data with LIMS or SCADA to support process control and quality documentation. Automatic refractometers with native export formats can simplify data handling.
| Feature | Portable Digital Refractometer | Benchtop Automatic Refractometer | Inline Automatic Unit |
|---|---|---|---|
| Typical use | On-site checks, QC spot tests | Laboratory batches, high-volume QC | Ongoing process monitoring |
| Calibration approach | Distilled-water manual calibration | Scheduled, automatic routines | Automated, remote verification |
| Data output | Bluetooth or USB | Ethernet, RS232, and USB | SCADA, Modbus, and Ethernet |
| Sample process | Drops or small cuvette | Autosampler, pumps | Production lines with pumps |
| Best for | Vineyards and on-site checks | QC laboratories and beverage R&D | Brewing, dairy, syrup processing |
When planning installation, align fittings and tubing with your supplier’s specifications to match the refractometer’s flow and pressure requirements. A correctly configured digital Brix refractometer will provide rapid, verifiable results for both production and laboratory teams.
How To Calibrate And Validate Your Refractometer
Reliable readings require consistent calibration and validation. Begin each session with a calibration check, record the results, and adhere to the manufacturer’s guidelines. This process supports accuracy and helps shorten troubleshooting.
Calibration standards and methods
Distilled or deionized water works as the main zero-reference. The refractometer should read 0 °Bx or the specified refractive index. For multi-point calibration, use certified fluids with known Brix or refractive index values inside the device range.
Calibrate refractometer Brix and temperature checks
Temperature variations affect readings. Calibration at the recommended temperature or with ATC is essential. Without ATC, apply manual corrections using the manufacturer’s tables.
Choose calibration standards close to your sample’s Brix range. Fruit juices need low-Brix standards, while honey and syrups need high-Brix standards. Record the lot number and expiration date of each standard for traceability.
Checking accuracy using reference materials
Periodic verification with reference materials and certified calibration fluids is necessary. For critical readings, compare results with a hydrometer or Abbe refractometer in a laboratory setting. This step increases confidence in refractometer validation, essential for precise work.
In brewing and winemaking, pair refractometer readings with hydrometer Specific Gravity checks to estimate ABV. Use validated calculators or tables to reconcile discrepancies. Good technique and cross-checking can produce combined results near ±0.5% ABV accuracy.
Maintain a calibration log with dates, standard lot numbers, measured values, and adjustments. Replace calibration fluids when they expire or become contaminated. Regular documentation supports quality audits and proves ongoing refractometer calibration standard control.
Using A Refractometer For Brewing, Winemaking And Beverage Testing
Refractometers are valuable for brewers, winemakers, and roasters because they simplify sugar and soluble-solids measurement. This part focuses on using refractometers for wort, must, and related beverage testing. It also offers insights into their use in brewing, winemaking, cider production, and coffee roasting.
Measuring wort and calculating ABV
Refractometer readings are essential for tracking °Brix before fermentation begins. The refractive index changes with alcohol content, necessitating the use of a hydrometer SG or a correction formula for accurate ABV estimation. One common approach calculates D = (SG – 1) × 1000 from hydrometer SG, then applies R-D with the refractometer reading and reference tables. Ensuring both samples are at the same temperature minimizes error.
Beer, wine, cider and coffee applications
Winemakers utilize refractometers to measure grape must in °Brix or degrees Oechsle, aiding in harvest planning and sugar addition. Brewers assess pre-boil and post-boil extract in °P or °Bx, and track fermentation with corrected refractometer readings. Cider makers use Brix values to predict alcohol content and guide yeast or nutrient choices.
Specialty coffee professionals use refractometers to report TDS and extraction yield. A dedicated coffee refractometer helps roasters and baristas measure brew strength and refine brewing parameters. For tanks and kegs, a beer refractometer supports fast field checks for beer and cider.
Homebrew and professional use cases
Homebrewers often prefer handheld or digital handheld models for their simplicity. Commercial users may prefer benchtop or inline brewing refractometers for precision and data capture. Draft systems and soda lines benefit from correct installation parts and routine maintenance that preserve sample quality.
| Common Use | Common Unit | Suggested Instrument | Primary Benefit |
|---|---|---|---|
| Homebrewing gravity checks | °Brix or °P | best refractometer for home brewing, handheld | Affordable and fast readings |
| Commercial brewery monitoring | °Bx with temperature compensation | digital benchtop refractometer for brewing | High accuracy and data export |
| Wine harvest planning | °Brix / °Oechsle | portable brewing refractometer | Rapid field sampling at the vineyard |
| Cider making | Brix | refractometer for brewing, stable temp | Alcohol content prediction |
| Specialty coffee extraction | TDS and extraction yield | coffee refractometer | Consistent cup strength with recipe tuning |
| Draft line checks | °Bx or percent solids | beer refractometer, inline or handheld | Rapid draft line and keg checks |
When selecting a refractometer for brewing, consider the specific measurement needs. For homebrewing, a good refractometer should have clear scales and simple calibration. Coffee users should look for a refractometer with TDS reporting. For keg and tank checks, a rugged beer refractometer is useful for routine monitoring.
Honey, Glycol, Plant And Salinity Refractometer Applications
Specialized refractometer work ranges from honey moisture checks to coolant monitoring and plant ripeness testing. Choosing the right instrument and calibration range is critical for reliable and consistent measurements. Below, we provide targeted advice and best practices for common niche applications.
Measuring Syrups And Honey
Because honey commonly falls between 60 and 90 °Bx, testing it requires a high-Brix instrument. Using a syrup refractometer or honey-focused digital model with specific scales helps determine moisture content quickly and precisely. It is best to warm thick samples slightly and stir them thoroughly before testing. Use supplier conversion charts to convert Brix values into moisture percentages and quality grades.
Glycol And Coolant Concentration
Effective concentration management in cooling systems is imperative. A digital glycol refractometer provides accurate readings of ethylene or propylene glycol concentration as a percentage or freezing-point equivalent. Use handheld units for quick checks and automatic units for ongoing HVAC monitoring. Ensure calibration with the recommended fluids from the manufacturer for consistent results.
Plant, Juice And Salinity Measurements
Field and lab uses often need different refractometer ranges. Plant analysis often uses a 0 to 12 °Bx Brix refractometer to assess soluble solids and harvest timing. For juice and beverage processing, sugar-content refractometers support recipe consistency and quality control. For marine and food brine applications, a digital saltwater refractometer is necessary, capable of measuring in PPT or percent to ensure proper salinity levels for aquaculture and canning.
It is important to match the device range to the application and use the correct calibration fluid. Review trusted suppliers and product pages before buying so specifications match the measurement task and records remain traceable.
Maintenance, Troubleshooting And Extending Instrument Life
Maintaining a refractometer ensures its longevity and optimal performance. Simple inspections and minor adjustments after use can help avoid major problems. The guidance below covers care steps, troubleshooting, and when to repair or replace the instrument.
Regular Maintenance Checklist
Clean the prism after each use with distilled water and a lint-free cloth. For difficult residue, use mild isopropyl alcohol only as directed by the manufacturer.
Examine the prism for any scratches or chips. Inspect seals and O-rings on inline and benchtop units so leaks and contamination are avoided.
Regular calibration using distilled water and certified standards is critical. Keep a detailed log of calibration dates and results to monitor any drift over time.
Replace batteries in portable models before they fail. Check firmware and software updates on digital units to maintain full functionality.
Common Problems And Fixes
A dirty, scratched, or bubble-covered prism can cause inconsistent readings. This can often be fixed by cleaning, drying, and recalibrating the instrument. Ensure both the sample and instrument are at the same temperature before measuring.
An incorrect zero reading usually means recalibration with distilled water is needed. If the zero continues to shift, check prism alignment and optical surfaces for damage.
Digital error codes or a blank display may indicate power or firmware issues. Restart the instrument, verify stable power, and clean sensors. Check the manual for code meanings before attempting internal repairs.
Inline and automatic system malfunctions often come from blocked sample lines, faulty pumps, or clogged filters. Remove air locks, verify rinse cycles, and inspect tubing for wear. Keeping spare refractometer parts available can reduce downtime.
When To Repair Or Replace
Handheld units with irreparable prism damage or persistent calibration drift beyond the manufacturer’s specifications should be replaced. A crushed or deeply scratched prism is rarely restored fully through repair.
For benchtop and automatic units, contact the manufacturer or an authorized service center for sensor replacement or factory recalibration. Compare repair estimates to the cost of a new instrument before authorizing work.
For draft beer, soda, or RO systems, track how long fittings and tubing have been in service. If repair costs approach the price of a new unit or your measurement needs change, consider replacement. Keep common refractometer parts and tubing in stock for fast fixes and longer instrument life.
| Maintenance Item | Action | Timing | Effect On Life |
|---|---|---|---|
| Prism cleaning | Distilled water and lint-free wipe; alcohol if needed | Every use | Reduces drift and prism damage |
| Instrument calibration | Calibrate with distilled water and certified standards; keep a log | Weekly or per protocol | Maintains accuracy and extends useful life |
| O-rings and seals | Inspect and replace worn items | Every month for heavy use | Helps prevent leaks and internal damage |
| Power & firmware | Replace batteries and update firmware | As needed, with monthly checks | Helps maintain digital reliability |
| Inline tubing & fittings | Inspect, clean, and replace worn tubing and clamps | Per system schedule or monthly | Helps reduce downtime and repair demand |
Buying Options And Professional Support For Commercial Use
Start by choosing a device that fits your operational requirements. Refractometers can be sourced from lab suppliers, beverage equipment distributors, and reputable online retailers. It’s essential to compare the accuracy, Automatic Temperature Compensation (ATC), range, and connectivity options. This ensures you select the most suitable refractometer for handheld testing, benchtop analysis, or inline monitoring.
For additional hardware, consider Installation Parts Supply. Installation Parts Supply, a factory-authorized distributor, provides refractometers and brewery installation supplies. These include tubing, clamps, regulators, carbonators, and fittings. Such parts support sanitary flow and sample integrity when adding a commercial refractometer to a draft system.
When building a draft or direct-draw system, compatible components are critical for avoiding flow issues. Select draft beer installation parts that fit the taps, regulators, and dispensing lines in use. Correct part selection helps lower contamination risk and maintain consistent readings.
For inline sensing or data integration, work with experienced installers. Engage with professional beverage equipment installers and factory-authorized distributors for system design, parts selection, and compatibility checks. Their expertise ensures the commercial refractometer operates reliably under production conditions.
For more complex systems, get guidance from certified technicians. They are essential for integrating data logging to SCADA or LIMS, automated sampling, and ensuring regulatory traceability and calibration certification. Laboratory services can also validate procedures for ABV compliance and commercial labeling.
Refer to the table below for a comparison of common buying choices and support options when equipping a commercial beverage line.
| Supplier Option | Most Useful For | Common Support | Supporting Supplies |
|---|---|---|---|
| Laboratory suppliers such as Ametek and Thermo Fisher | Benchtop accuracy and calibration requirements | Calibration fluids and technical documentation | Calibration fluids, reference materials |
| Local professional dealers and beverage equipment distributors | Integrated taproom and bar systems | On-site installation, parts matching | Carbonators, Taprite regulators, fittings |
| Online stores and specialty retailers | Digital and handheld tools for small labs | Reviews, returns, and customer support | Cleaning kits, sample cups, and cases |
| Factory-authorized distributors, Installation Parts Supply | Commercial projects and OEM requirements | OEM parts, factory components, warranty support | Commercial refractometer units, brewery installation supplies |
| Certified laboratory services | Traceable calibration and regulatory compliance | Method validation and calibration certificates | Reference materials and supporting documentation |
Closing Summary
A refractometer offers quick, precise measurement of soluble solids, sugar content, salinity, and glycol concentration in many industries. This guide explained the fundamental principle of refractive index measurement. It underscored the significance of selecting the appropriate instrument, ranging from handheld to benchtop, automatic, and inline models. For those in the food and beverage sectors, grasping the nuances of refractometer applications and choosing the correct device is imperative. It can reduce expensive mistakes and support steady product quality.
Proper sample preparation, temperature control, and routine calibration are essential for accuracy. Small-scale brewers and winemakers often benefit most from handheld or digital handheld refractometers. Larger operations and users needing continuous monitoring often benefit from benchtop, automatic, or inline models. These offer advanced features such as data logging and integration, catering to the demands of production scale and regulatory compliance.
It is wise to pair refractometer readings with hydrometer checks where practical, especially in brewing and winemaking for ABV calculations. This cross-checking supports quality control by confirming results. Maintaining detailed calibration and maintenance records is also vital. Working with trusted suppliers for parts and installation supports refractometer longevity and reliability. Following these guidelines helps produce consistent, reliable data in beverage and food settings.
