FTTH Cable Production Line
Fiber Ribbon Line
Fiber Draw Tower

Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) supplies automated FTTH cable production line systems for the United States market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics combines machines and control systems. It manufactures drop cables, indoor/outdoor cables, and high-density units for telecom, data centers, and LANs.

This modern FTTH cable making machinery provides measurable business value. The line enables higher throughput as well as consistent optical performance with low attenuation. The line also complies with IEC 60794 as well as ITU-T G.652D / G.657 standards. Customers benefit from reduced labor costs together with material waste through automation. Full delivery services include installation as well as operator training.

This FTTH cable line output line package features fiber draw tower integration, a fiber secondary coating line, together with a fiber coloring machine. This system additionally covers SZ stranding line, fiber ribbone line, compact fiber unit assembly, cable sheathing line, armoring modules, and testing stations. Control together with power specs typically rely on Siemens PLC featuring HMI, operating at 380 V AC ±10% and modular power consumption up to roughly 55 kW depending on configuration.

Shanghai Weiye’s customer support model includes on-site commissioning by experienced engineers, remote monitoring, and rapid troubleshooting. It also offers lifetime technical support and operator training. Clients are typically required to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.

Key Takeaways

  • FTTH cable production line solutions meet growing U.S. demand for fiber-to-the-home deployments.
  • Complete turnkey systems from Shanghai Weiye combine automation, standards compliance, and operator training.
  • Flexible modular systems use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
  • Built-in modules cover drawing, coating, coloring, stranding, ribbon, sheathing, armoring, and testing.
  • Advanced FTTH cable making machinery reduces labor, waste, and improves optical consistency.
  • Technical support includes on-site commissioning, remote diagnostics, and lifetime technical assistance.

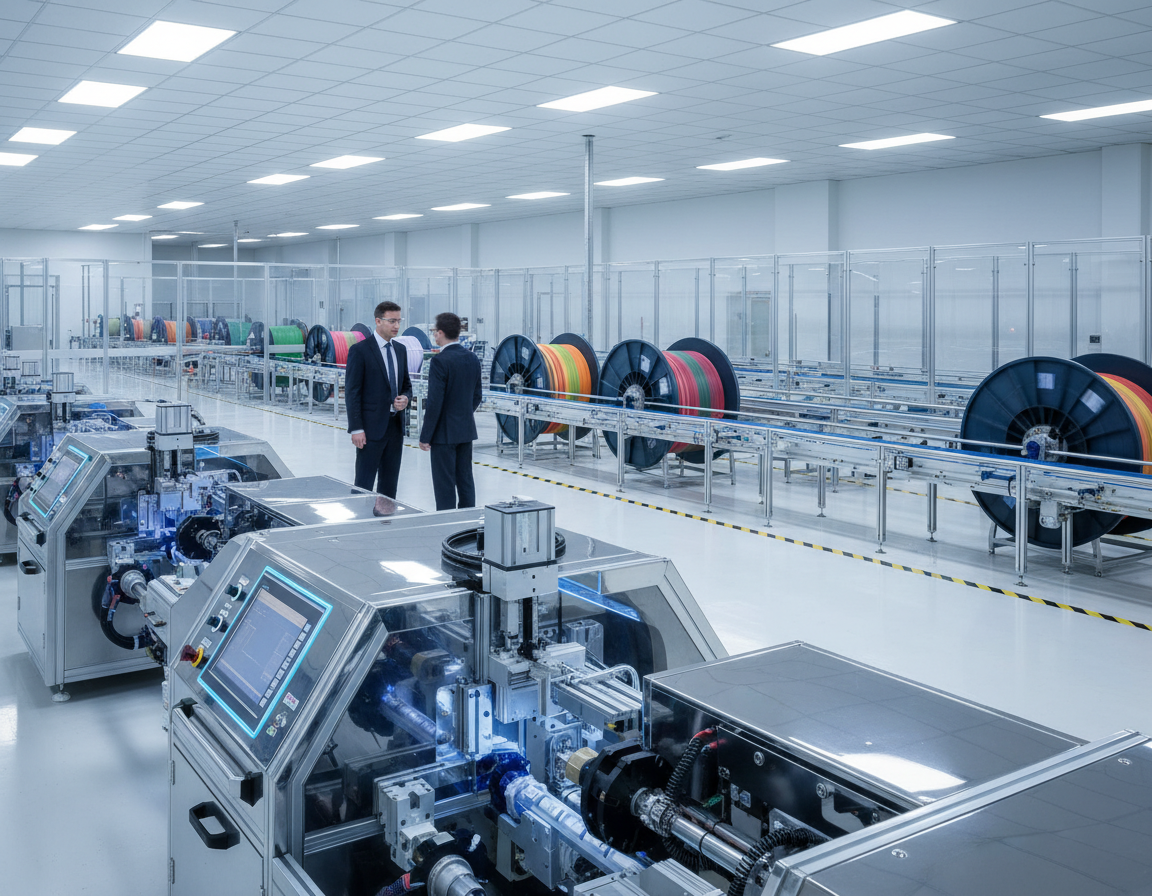

SZ stranding lines

FTTH Cable Production Line Technology Explained

The fiber optic cable production process for FTTH requires precise control at every stage. Producers rely on integrated lines that combine drawing, coating, stranding, and sheathing. That method boosts yield as well as speeds up market entry. It serves the needs of both residential as well as enterprise deployments in the United States.

Below, we outline the core components as well as technologies driving modern manufacturing. Each module must operate using precise timing together with reliable feedback. The choice of equipment affects product quality, cost, and flexibility for various cable designs.

Core Components Of Modern Fiber Optic Cable Manufacturing

Secondary coating lines apply dual-layer coatings, often 250 µm, using high-output UV curing. Tight buffering as well as extrusion systems offer 600–900 µm jackets for indoor and drop cables.

SZ stranding lines use servo-controlled pay-off and take-up units to handle up to 24 fibers with accurate lay length. Fiber coloring machines employ multi-channel UV curing to mark fibers to industry color codes.

Sheathing and extrusion stations produce PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs and UV dryers stabilize profiles before testing.

Evolution From Traditional To Modern Production Systems

Early plants used manual and semi-automatic modules. Lines were separate, featuring hand transfers as well as basic controls. Current facilities move to PLC-controlled, synchronized systems using touchscreen HMIs.

Remote diagnostics and modular turnkey setups allow rapid changeover between simplex, duplex, ribbon, as well as armored formats. That shift supports automated fiber optic cable manufacturing and reduces labor dependence.

Key Technologies Driving Industry Innovation

High-precision tension control, based on servo pay-off and take-up, keeps geometry stable during high-speed runs. Multi-zone temperature control using Omron PID and precision heaters ensures consistent extrusion quality.

High-speed UV curing together with water cooling accelerate profile stabilization while reducing energy rely on. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, together with aging data.

Process Typical Unit Benefit
Fiber drawing Draw tower with automated tension feedback Uniform core size and low attenuation
Secondary coating UV-curing dual-layer coaters Consistent 250 µm coating for durability
Fiber coloring Fiber coloring unit with multiple channels Accurate identification for splicing and installation
SZ stranding Servo-controlled SZ stranding line (up to 24 fibers) Accurate lay length across ribbon and loose tube designs
Jacket extrusion & sheathing Multi-zone heated energy-saving extruders PE/PVC/LSZH jackets with tight dimensional control
Cable armoring Steel tape/wire armoring units Stronger mechanical protection for outdoor applications
Profile cooling & curing Cooling troughs plus UV dryers Quicker profile setting with fewer defects
Quality testing Real-time attenuation and geometry measurement Real-time quality control and compliance reporting

Compliance with IEC 60794 and ITU-T G.652D/G.657 variants is standard. Manufacturers typically certify to ISO 9001, CE, and RoHS. These credentials enable diverse applications, from FTTH drop cable production to armored outdoor runs and data center high-density solutions.

Choosing cutting-edge fiber optic production equipment and modern manufacturing equipment enables firms meet tight tolerances. Such equipment selection enables efficient automated fiber optic cable production and positions companies to deliver on scale and quality.

Key Equipment For Fiber Secondary Coating Line Operations

The secondary coating stage is critical, giving drawn optical fiber its final diameter and mechanical strength. It prepares the fiber for stranding and cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, and surface quality. This protects the glass during handling.

Producers aiming for high-yield, high-speed fiber optic cable production must match material, tension, and curing systems to process requirements.

High-speed secondary coating processes rely on synchronized pay-off, coating heads, and UV ovens. Modern systems achieve high production rates while minimizing excess loss. Precise tension control at pay-off and winder stages prevents microbends and ensures consistent coating thickness across long runs.

Single together with dual layer coating applications serve different market needs. Single-layer setups provide basic mechanical protection as well as a simple optical fiber cable line output machine footprint. Dual-layer lines combine a harder inner layer with a softer outer layer to improve microbend resistance and stripability. That helps when fibers are prepared for connectorization.

Temperature control and curing systems are critical to final fiber performance. Multi-zone heaters and Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens and water trough cooling stabilize the coating profile and reduce variation in excess loss; targets for high-quality single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.

Key components from trusted suppliers improve uptime and precision in an optical fiber cable production machine. Extruders such as 50×25 models, screws and barrels from Jinhu, and bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, and PLC/HMI platforms from Siemens or Omron provide robust control and monitoring for continuous runs.

Operational parameters shape preventive maintenance and process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation and curing speeds are adjusted to material type as well as coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable as well as supports reliable fast-cycle fiber optic cable line output.

Fiber Draw Tower And Optical Preform Processing

The fiber draw tower is the core of optical fiber drawing. It softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand with precise diameter control. This step sets the refractive-index profile and attenuation targets for downstream processes.

Process control on the tower uses real-time diameter feedback as well as tension management. This prevents microbends. Cooling zones and closed-loop systems keep geometry stable during the optical fiber cable production process. Modern towers log metrics for traceability and rapid troubleshooting.

Output consistency supports single-mode fibers such as ITU-T G.652D and bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.

Integration with secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment and tension as the fiber enters coating, coloring, or ribbon count stations. This link ensures the optical fiber drawing step feeds smoothly into cable assembly.

Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, as well as geometric tolerances. Such capabilities help manufacturers scale toward fast-cycle fiber optic cable line output while maintaining ISO-level consistency checks.

Feature Main Purpose Typical Target
Furnace with multiple zones Uniform preform heating for stable glass viscosity Stable draw speed and refractive profile
Real-time diameter control Preserve core/cladding geometry and lower attenuation Tolerance ±0.5 μm
Tension and cooling management Protect fiber strength while preventing microbends Defined tension by fiber type
Integrated automated pay-off Secure handoff to secondary coating and coloring Synchronized feed rates for zero-slip transfer
Inline test stations Check attenuation, tensile strength, and geometry Single-mode loss target of ≤0.2 dB/km after coating

Advanced SZ Stranding Line Technology For Cable Assembly

The SZ stranding method creates alternating-direction lays that cut axial stiffness as well as boost flexibility. That makes it ideal for drop cables, building drop assemblies, together with any application that needs a flexible core. Producers moving toward automated fiber optic cable manufacturing rely on SZ approaches to meet tight bend as well as axial tolerance specs.

Precision in the stranding stage protects optical performance. Modern precision stranding equipment uses servo-driven carriers, rotors, and modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.

Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, and haul-off units maintain constant linear speed and target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 and 20 N.

Integration featuring a downstream fiber cable sheathing line streamlines line output together with cuts handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs using stranding through a Siemens PLC. Cooling troughs and UV dryers stabilize the jacket profile right after extrusion to prevent ovality and reduce mechanical stress.

Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire with adjustable tension to meet specific mechanical ratings.

Built-in quality control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, and optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows and cut rework.

The combination of a robust sz stranding line, high-end precision stranding equipment, as well as a synchronized fiber cable sheathing line provides a scalable solution for manufacturers. This combination raises throughput while protecting optical integrity and mechanical performance in finished cables.

Fiber Coloring And Identification System Technology

Coloring and identification are critical in fiber optic cable line output. Accurate color application minimizes splicing errors together with accelerates field work. Advanced equipment combines fast coloring with inline inspection, ensuring high throughput together with low defect rates.

Today’s high-output coloring technology supports multiple channels together with quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning using secondary coating lines. UV curing at speeds over 1500 m/min supports color together with adhesion stability for both ribbon as well as counted fibers.

This next sections review standards and coding prevalent in telecom networks.

Color coding adheres to international telecom standards for 12-color cycles and ribbon schemes. This compliance aids technicians in installation and troubleshooting. Consistent coding significantly reduces field faults and accelerates network deployment.

Quality control integrates high-spec fiber identification systems into manufacturing lines. In-line cameras, spectrometers, together with sensors detect color discrepancies, poor saturation, and coating flaws. This PLC/HMI interface alerts to issues together with can pause the line for correction, safeguarding downstream processes.

Machine specifications are vital for uninterrupted runs and material compatibility. Leading equipment accepts UV-curable pigments and inks, compatible with common coatings and extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.

Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye and other established vendors offer customizable channels, remote diagnostics, and onsite training. This support reduces ramp-up time and enhances the reliability of fiber optic cable production equipment.

Fiber Solutions For Metal Tube Production

Metal tube as well as metal-armored cable assemblies offer robust protection for fiber lines. They are ideal for direct-buried together with industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.

Processes depend on precision filling and centering units. These modules, in conjunction with fiber optic cable manufacturing equipment, ensure concentric placement as well as controlled tension during insertion.

Armoring steps involve the use of steel tape or wire units with adjustable tension and wrapping geometry. That approach benefits armored fiber cable production by preventing compression of fiber elements. It also keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.

Coupling armoring featuring downstream sheathing together with extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable line output machine must handle pay-off reels sized for reinforcement and align with sheathing tolerances.

Quality checks include crush, tensile, and aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing ensures long-term reliability in field conditions.

Turnkey solutions from established manufacturers integrate metal tube handling with SZ stranding and sheathing lines. These solutions include operator training and maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.

Buyers should consider compatibility featuring armored fiber cable production modules, ease of changeover, as well as service support for field upgrades. Those points reduce downtime together with protect investment in an optical fiber cable line output machine.

Fiber Ribbon Line And Compact Fiber Unit Manufacturing

Modern data networks require efficient assemblies that pack more fibers into less space. Manufacturers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. This approach uses parallel processes and precise geometry to meet the needs of MPO trunking and backbone cabling.

Advanced equipment helps ensure accuracy and speed in manufacturing. A fiber ribbon line typically integrates automated alignment, epoxy bonding, precise curing, and shear/stacking modules. In-line attenuation as well as geometry testing reduce rework, maintaining high yields.

Compact fiber unit production focuses on tight tolerances and material choice. Extrusion and buffering create compact fiber unit constructions with typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, and LSZH for durability and flame performance.

High-density cable solutions aim to enhance rack and tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter and simplify routing. They are compatible with MPO trunking and high-count backbone systems.

Production controls and speeds are critical for throughput. Modern lines can reach up to 800 m/min, depending on configuration. PLC and HMI touch-screen control enable quick parameter changes and synchronization across multiple lines.

Quality together with customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, and turnkey integration featuring sheathing as well as testing stations support bespoke fast-cycle fiber cable production line requirements.

Production Feature Fiber Ribbon Line Compact Fiber Unit Benefit for Data Centers
Line speed Up to 800 m/min Typically up to 600–800 m/min Greater throughput for large-scale deployments
Key Processes Automated alignment, epoxy bonding, curing Extrusion, buffering, and tight-tolerance winding Consistent geometry and lower insertion loss
Material set Engineered tapes and bonding resins PBT, PP, LSZH jackets and buffers Durable performance and safety compliance
Quality testing In-line attenuation and geometry checks Tension monitoring and dimensional control Reduced field failures and faster deployment
Line integration Sheathing and splice-ready stacking Modular compact units for dense cable solutions Simplified MPO trunking and backbone construction

How To Optimize High-Speed Internet Cables Production

Efficient fast-cycle fiber optic cable production relies on precise line setup and strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, as well as tension systems. That supports optimal output for flat, round, simplex, as well as duplex FTTH profiles.

Cabling Systems Used In FTTH Applications

FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- and 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.

Extruder models, such as a 50×25, control jacket speeds between 100 and 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.

Quality Assurance In The Fiber Pulling Process

Servo-controlled pay-off and take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, and crush and aging cycles. These tests verify performance.

Key control components include Siemens PLCs and Omron PID controllers. Motors from Dongguan Motor and inverters from Shenzhen Inovance ensure stable operation and easier maintenance.

Meeting Optical Fiber Drawing Industry Standards

A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D and G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-quality single-mode fiber.

Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, together with local after-sales support. Top FTTH cable manufacturing line manufacturers deliver turnkey layouts, remote monitoring, and operator training. This cuts ramp-up time for US customers.

Closing Summary

Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, together with ribbon units. This line additionally contains sheathing, armoring, and automated testing for consistent high-speed fiber manufacturing. A complete fiber optic cable manufacturing line is designed for FTTH as well as data center markets. It enhances throughput, keeps losses low, as well as maintains tight tolerances.

For U.S. manufacturers and system integrators, partnering with reputable suppliers is key. They should offer turnkey systems with Siemens or Omron-based controls. This includes on-site commissioning, remote diagnostics, and lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co provide integrated solutions. These integrated packages simplify automated fiber optic cable manufacturing and reduce time to production.

Technically, ensure line configurations adhere to IEC 60794 as well as ITU-T G.652D/G.657 standards. Verify tension and curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable line output line, first evaluate required cable types. Collect product drawings together with standards, request detailed equipment specs as well as turnkey proposals, together with schedule engineer commissioning as well as operator training.
